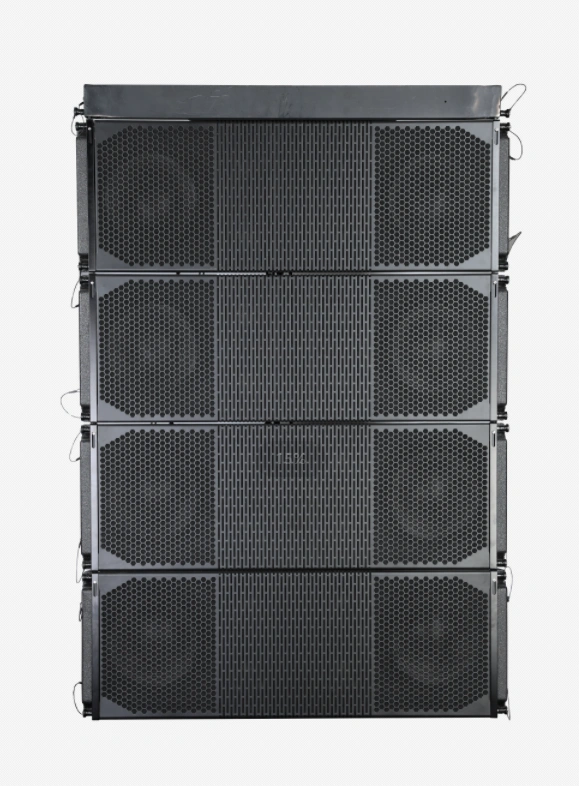

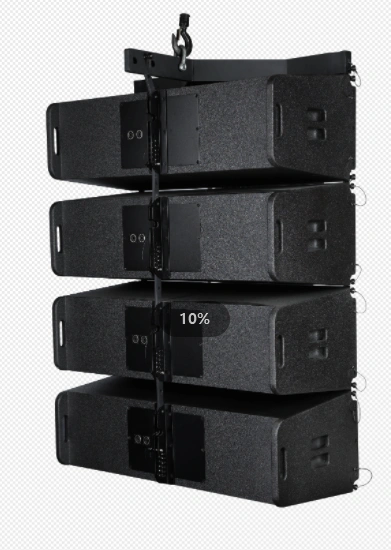

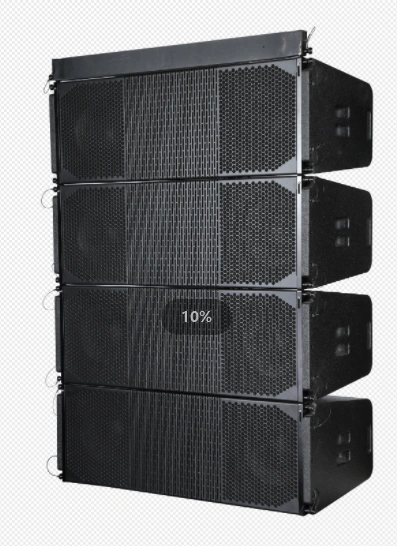

LA3212 DUAL 12INCH THREE-WAY FOUR-DRIVER LINE ARRAY SPEAKER FOR MOBILE PERFOMANCE

SKU:
LA3212 is a three-way four-driver line array speaker system. Line array loudspeakers feature high performance, high power, high directivity, versatility and a very compact cabinet design. Provides 2×12-inch neodymium magnet carbon fiber woofer (75mm voice coil), 4×6.5-inch neodymium magnet carbon fiber mid-range unit (50mm voice coil) and 2×3 neodymium magnet titanium diaphragm tweeter (75mm voice coil), professional performance system. The unique unit design and new materials can effectively enhance the unit's carrying power and are more suitable for working under high-power conditions for a long time, ensuring that the unit achieves high fidelity, broadband, and high fidelity during use.
0.0 (0 Reviews)
0 Sold
$0.00 $700.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA3212 Double 12 inch 3-way line array speakers passive line array loudspeaker
  • LA3212 Double 12 inch 3-way line array speakers passive line array loudspeaker
  • Description
  • Company profile
Specification
System type Dual 1 2 three-way four-driver inch line array speakers
Frequency response 60Hz -18 kHz (-10dB)
Sensitivity (1 W / 1 m) HF: 107dB MID: 100dB LF: 98dB
Nominal impedance (Ω) HF: 16Ω MID: 8Ω LF: 8Ω
Rated power (W) HF: 160W MID: 480W LF1: 400W LF2: 400W
Bass unit Neodymium magnet, 2×12” carbon fiber woofer/75mm voice coil
Midrange unit Neodymium magnet, 4×6.5" carbon fiber midrange unit/50mm voice coil
Tweeter Neodymium magnet, 2×3” titanium diaphragm tweeter/75mm voice coil
Nominal coverage angle (H x V) 100°×10°
Maximum sound pressure level (S P L) LF: 130dB (continuous), 136dB (peak)
Hanging parts three-point hanging, 0°-10° adjustable
Connection socket 2 professional NL8MP eight-core sockets
wiring method LF:1+1 LF:2+2- MID:3+3- HF:4+4- Size (W×D×H): 1105×597×383 (mm)
Size (W×D×H) 1105×597×383 (mm)
Product net weight 65(kg)



  • Features

    Good transient response and low distortion, not easy to cause listening fatigue
    Solve the mid-range heat dissipation problem and make the mid-range listening experience more natural and clear
    Good transient, excellent listening experience, clean and elastic sound, full of strength
    Perfect coupling of midrange to treble and bass drivers
    The phase is more perfect and the listening experience is more natural.
    Midrange phase plug makes midrange reproduction cleaner and clearer without lacking thickness
    Horizontal directivity 100°

    Application
    Main PA for large sound reinforcement systems
    Mobile performances
    gymnasium
    Theater/theater/auditorium
