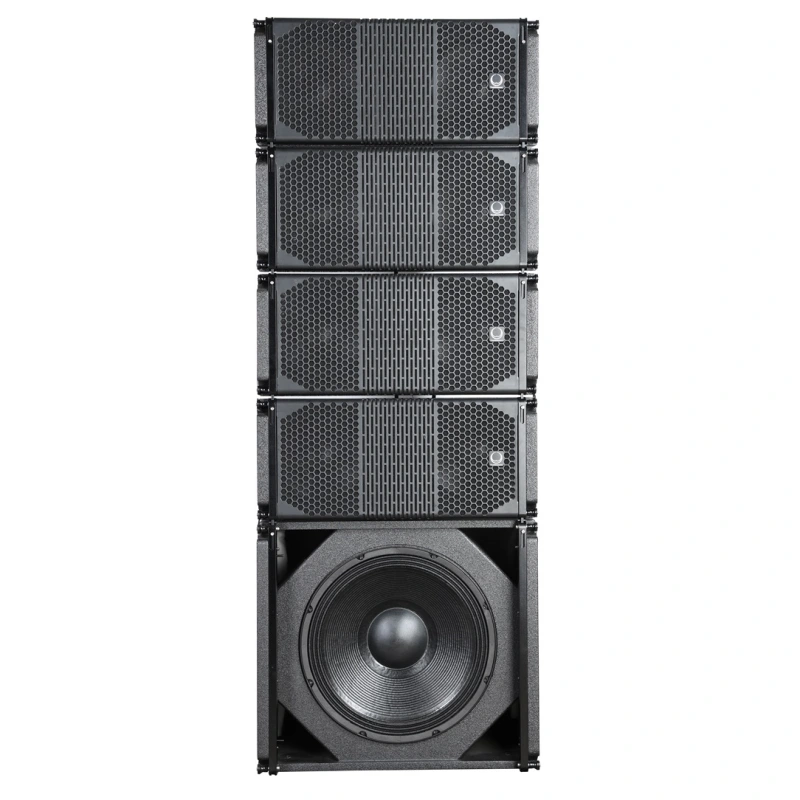

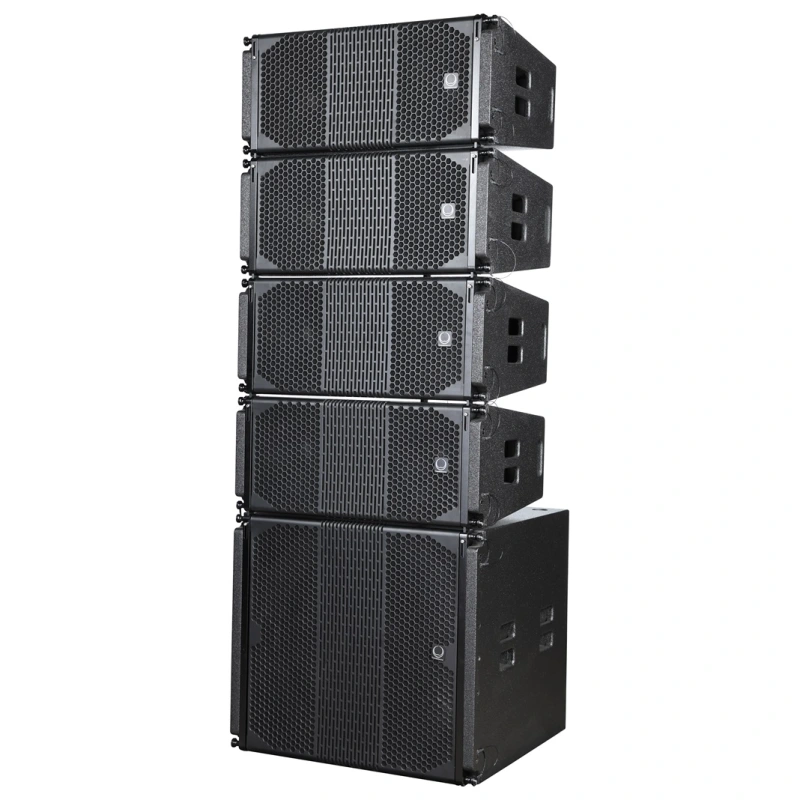

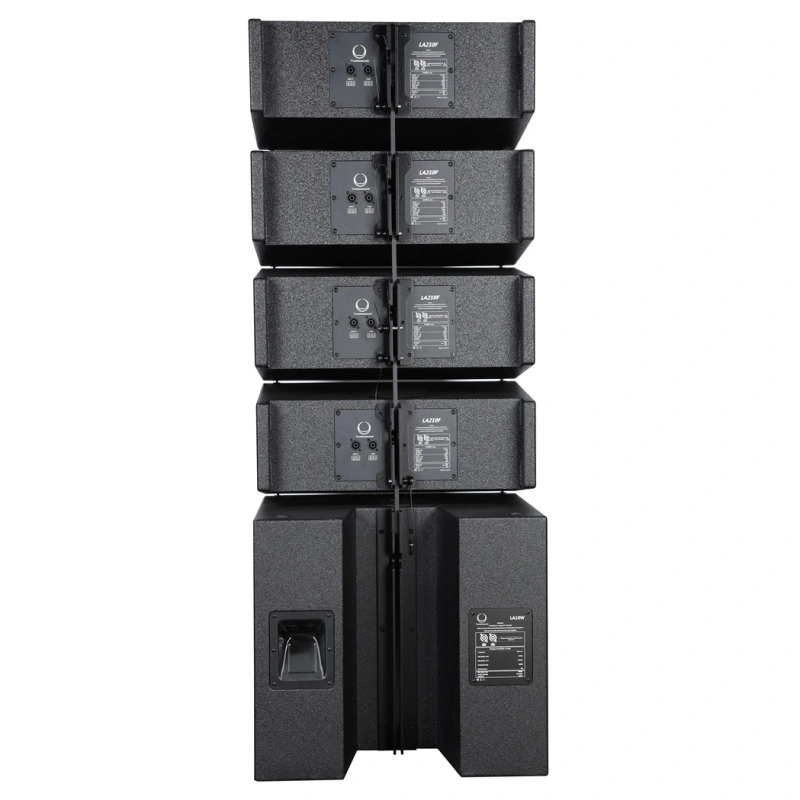

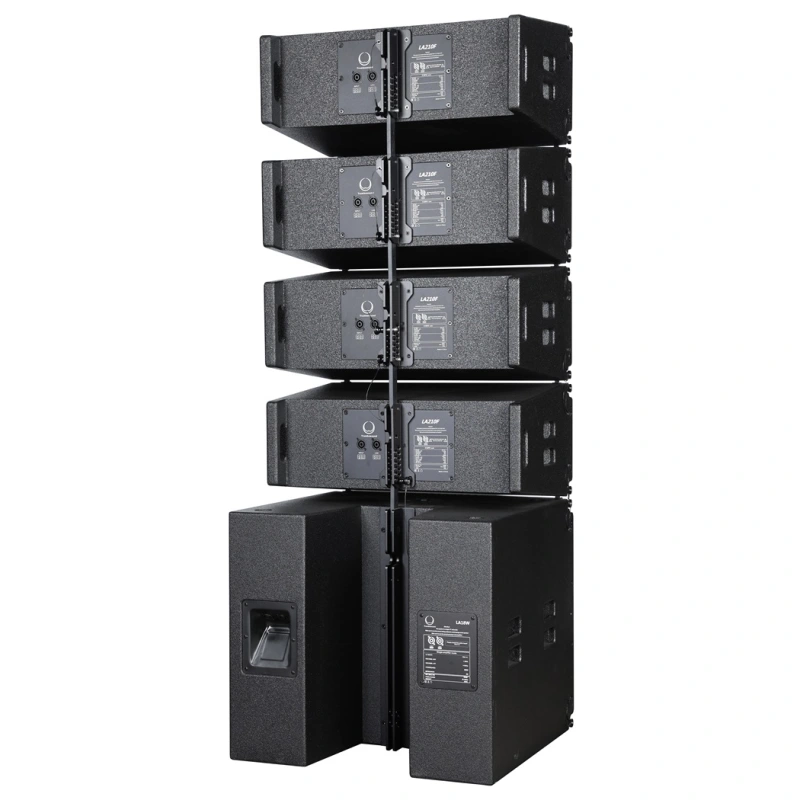

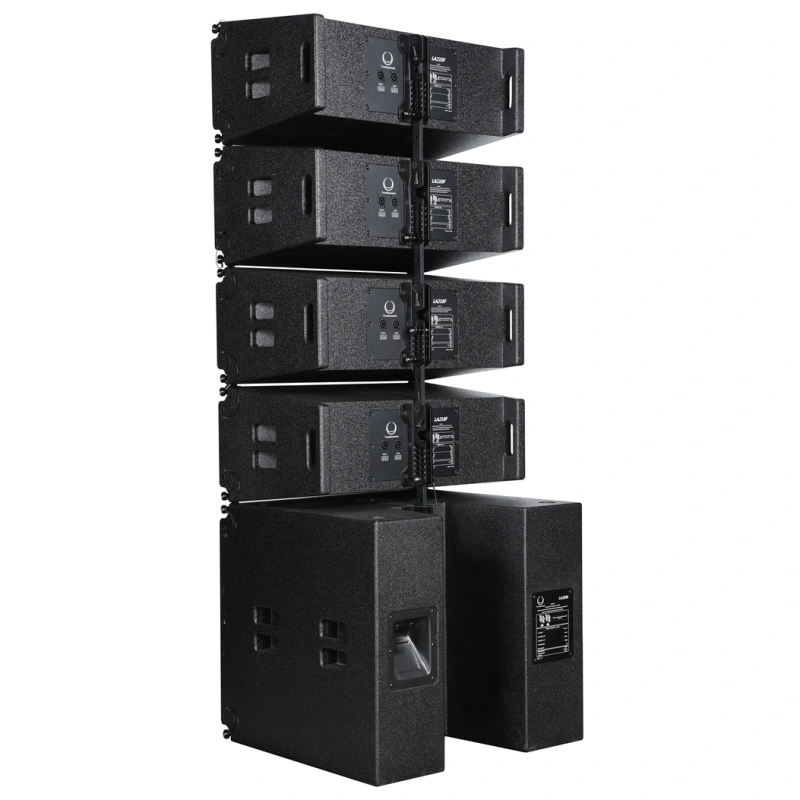

LA210F+LA18W Double 10 inch 2-way Passive line array loudspeaker 3-way line array speaker

Specification Of LA210F
System type:Dual 1 0 inch two-way two-drive curve array speakers
Frequency response:70Hz -18 kHz
Sensitivity ( 1W/1m ):HF:110dB LF:98dB
Nominal Impedance (Ω):HF:16Ω LF:16Ω
Rated power(W):HF:80W LF:600W
Woofer:2×10" ferrite carbon bass (65mm voice coil)
High unit:1×3" neodymium tweeter (75mm voice coil)
Nominal Coverage Angle (H x V):100°×10°
Maximum sound pressure level (SPL):HF:129/135dB LF:127/133dB
Pendants:The three-point hanging is adjustable from 0 to 12°
Connect the socket:Professional NL4MP 4-pin socket 2pcs  2+2-HF，1+1-LF
Dimensions (W×D×H ):644×416×283（mm）
Product net weight (kg):26kg

Specification Of LA18W
TYPE:Single 18-inch subwoofer
Frequency response:35Hz -300Hz（-10）
Sensitivity ( 1W/1m ):100dB
Woofer:ferrite、18 " woofer/100mm coil
SPL:128dB /134dB
Hanging:3 point
Connect:NL4MP 4-pin socket 2pcs
Size (W×D×H ):650×611×580（mm）
Net weight( kg ):42kg
Nominal impedance:8Ω
Rated power:600W

Features Of LA210F
 The LA210 is a two-way full-range line array speaker system. The bass is two ten-inch 65mm mid-bass unit is equipped with a symmetrical direct arrangement, which solves the problem of mid-bass and treble energy treble also uses a 75mm neodymium high-performance compression
High-frequency drivers, combined with treble waveguide horn technology, make high-frequency sensitivity up to 110dB (1M/1W) directivity control is uniform over a 100°×10° coverage range directivity.
- The LA210 has a symmetrical design with a box center of gravity centered in the middle of the cabinet with three points Hanging system, the speaker is easy and simple to install.

Features Of LA18W

 LA18W is a compact, widely used high-performance line array subwoofer. It
adopts an 18-inch subwoofer, a 100mm voice coil, a large stroke design, and the selection of high-quality speakers, which can effectively ensure the sound restoration output in large-scale applications. Stable performance under power conditions.
 LA18W is equipped with a professional hanging device, which can be successfully hoisted with LA210. The device is made of lightweight aluminum and is fully CNC processed, making it easy and firm to install.

Application

Main PA for medium-sized PA systems
Move performances
Stadium
Theater/auditorium
