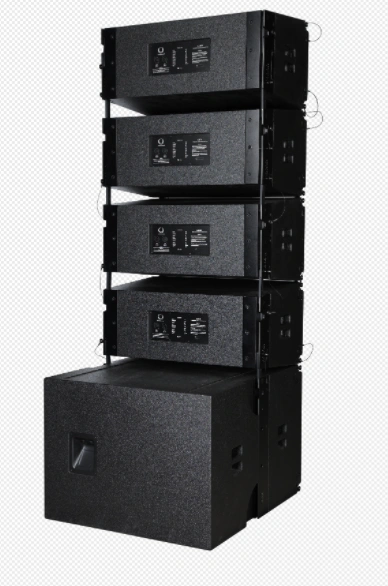

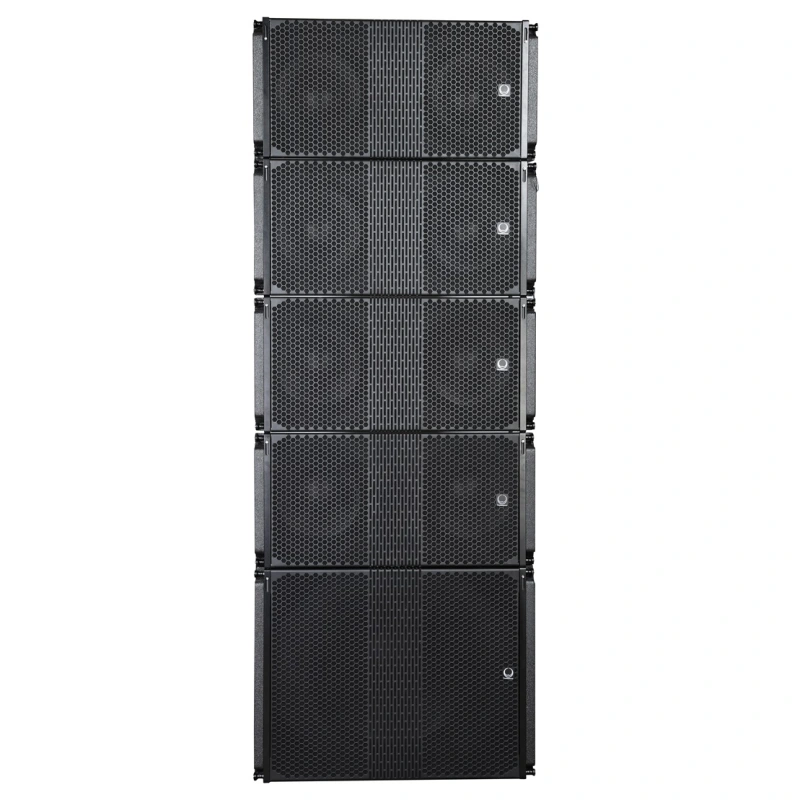

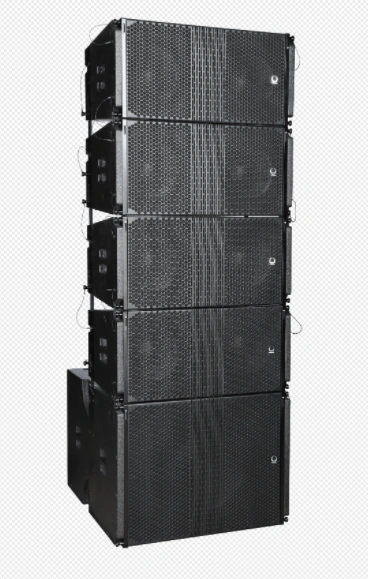

LA212+LA21B LINE ARRAY AUDIO FOR MOBIAL PORFOMANCE

Name: LA212+LA21B LINE ARRAY AUDIO FOR MOBIAL PORFOMANCE
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: LA212+LA21B
Price: 8597 USD
Availability: InStock

With versatile functions and advanced audio technology, the LA series of multi-functional line array speakers provide excellent audio performance in a variety of applications, accurately meeting different sound reinforcement needs. This speaker is used in performances, stadiums, theaters, banquet halls, multi-function halls and various high-end occasions

0.0 (0 Reviews)

0 Sold

$8,597.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
Company profile

Specification

	LA212	LA21B	R4-1300
System type:	Dual 1 2-inch two-way two-driver line array speakers	Single 21-inch subwoofer
Frequency response:	63Hz -18 kHz (±3)	28Hz -350Hz	20Hz~20kHz, +1/-1dB
Sensitivity (1W/1m)	HF:108dB LF:98dB	100dB
Nominal impedance (Ω)	HF: 16Ω LF: 16Ω	8Ω
Rated power (W):	HF: 160W LF: 600W	1200W	(stereo 8Ω): 2×1300W (stereo 4Ω): 2×1800W
Bass unit:	2×12-inch ferrite carbon fiber woofer (75mm voice coil)	Ferrite, 21" woofer/125mm voice coil
Tweeter:	2×1.4-inch exported ferrite compression tweeter (65mm voice coil)
Nominal coverage angle (H x V):	100°×10°
Maximum sound pressure level (SPL):	HF: 130/136dB LF: 125/131dB	130dB (continuous), 136dB (peak)
Suspension parts:	four-point suspension adjustable from 0 to 10°	four-point suspension
Connection socket:	2 professional NL4MP four-core sockets 2+2-HF, 1+1-LF	2 professional NL4MP four-core sockets 1+1-
Dimensions (W×D×H):	796×469×378 (mm)	796×900×600 (mm)	88×483×390mm
Product net weight (kg):	47kg	76kg	23.8kg
Bridged mono mode 8Ω:			3500W
Total harmonic distortion (THD):			≤0.5%
Damping coefficient:			≥200:1
Voltage amplification			Voltage amplification
Signal-to-noise ratio (A-weighted):			≥97dB
Input sensitivity (rated power 8Ω):			0.775V
Input impedance (rated):			20KΩ (balanced)/10KΩ (unbalanced)
Separation:			≥60dB Input common mode rejection ratio: -80dB
Input connector:			One balanced XLR per channel
Output connector (speaker connection interface)			4-POLE Speakon per channel
Compression ratio:			20:1
Power supply:			AC 220V 50Hz~60Hz

Features

LA212 is an external two-way full-range line array speaker system
LA212 adopts a symmetrical design, and the center of gravity of the box is concentrated in the middle of the box.
LA21B is a widely used high-performance line array subwoofer
LA21B is equipped with professional hanging device, which can be successfully hoisted with LA212.

Application

Large conference hall, multi-functional hall
Theaters, auditoriums
gym
CLUBS AND DISCO
Performing Arts Hall
