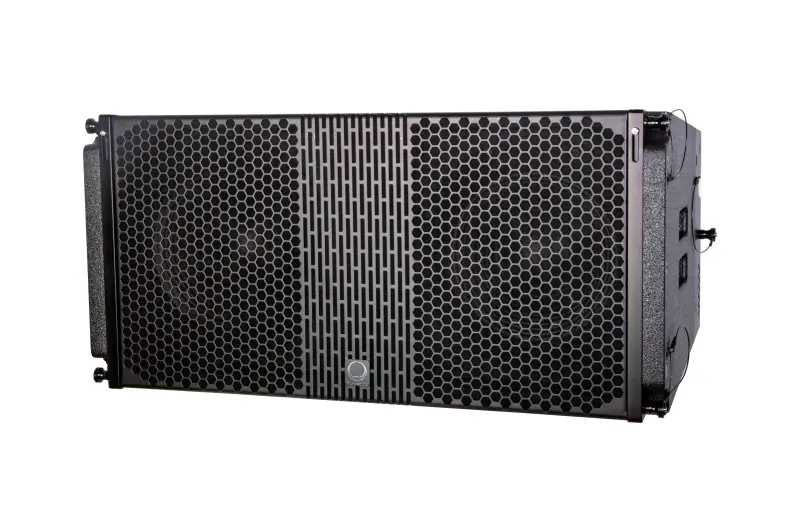

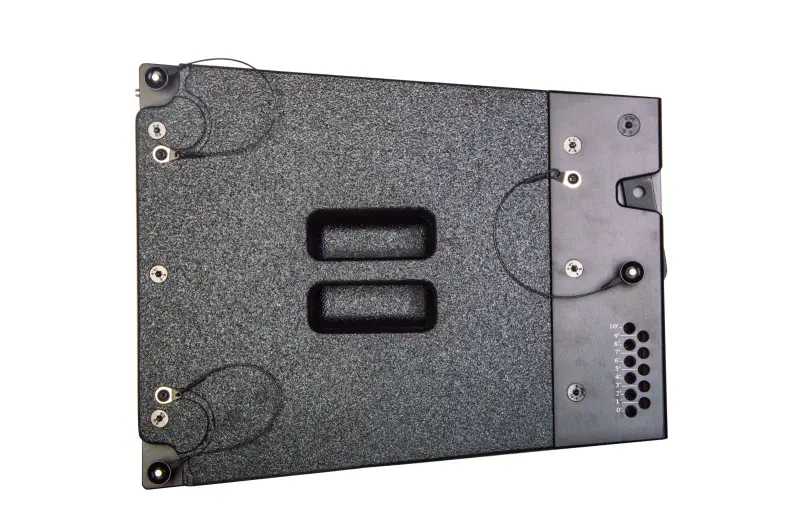

LA212A DUAL 12INCH TWO-WAY TWO-DRIVE ACTIVE LINE ARRAY SPEAKER FOR MOBILE PEFORMANCE

SKU:
LA212A is a two-driver two-way active line array speaker system. The line array speaker has high performance, high power, high directivity, multi-purpose and very compact cabinet design. It provides 2×12-inch ferrite Carbon fiber woofer (75mm voice coil), 2×2.5-inch ferrite tweeter (65mm voice coil), professional performance system. The unique unit design and new materials can effectively enhance the unit's carrying power and are more suitable for working under high-power conditions for a long time, ensuring that the unit achieves high fidelity, broadband, and high fidelity during use.
0.0 (0 Reviews)
0 Sold
$0.00 $508.50
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • LA212A DUAL 12INCH TWO-WAY TWO-DRIVE ACTIVE LINE ARRAY SPEAKER FOR MOBILE PEFORMANCE
  • LA212A DUAL 12INCH TWO-WAY TWO-DRIVE ACTIVE LINE ARRAY SPEAKER FOR MOBILE PEFORMANCE
  • LA212A DUAL 12INCH TWO-WAY TWO-DRIVE ACTIVE LINE ARRAY SPEAKER FOR MOBILE PEFORMANCE
  • Description
  • Company profile
Specification
System type Dual 12-inch two-way two-driver active line array speakers
Frequency response 63Hz -18 kHz (±3)
Sensitivity HF:108dB LF:98dB
Nominal impedance (Ω) HF: 16Ω LF: 16Ω
Rated power (W) HF: 160W LF: 600W
Bass unit 2×12-inch ferrite carbon fiber woofer (75mm voice coil)
Tweeter 2×2.5-inch ferrite tweeter (65mm voice coil)
Nominal coverage angle (H x V) 100°×10°
Maximum sound pressure level (S P L) HF: 130/136dB LF: 125/131dB
Suspension parts four-point suspension adjustable from 0 to 10°
Connectors 1× XLR IN; 1× XLR OUT; RJ45 (RS485 control interface); 2× Powercon IN/OUT
Sampling rate 48kHz/24Bit
Filter type Butterworth, Linkwitz, bessel/6dB/oct~48dB/oct
Amplifier Module Dual Channel Class D
Gain 20dB
Signal-to-noise ratio S/N 95dB (A-weighted)
Working voltage range AC1 0 0 - 2 4 0V, 5 0 / 6 0Hz
Dimensions (W×D×H) 796×469×378 (mm)
Product net weight (kg) 48kg

Features
  • External two-way full-range line array speaker system
  • 2 12-inch 75mm mid-bass units
  • 2 x 65mm ferrite high-performance compression high-frequency drivers
  • Easy and simple installation
  • Built-in Class D switching power amplifier


Application
  • Outdoor medium and large sound reinforcement system main amplification
  • Mobile performance main amplification
  • Stadium main expansion
  • Theatre/theatre/auditorium/multi-purpose hall main expansion
