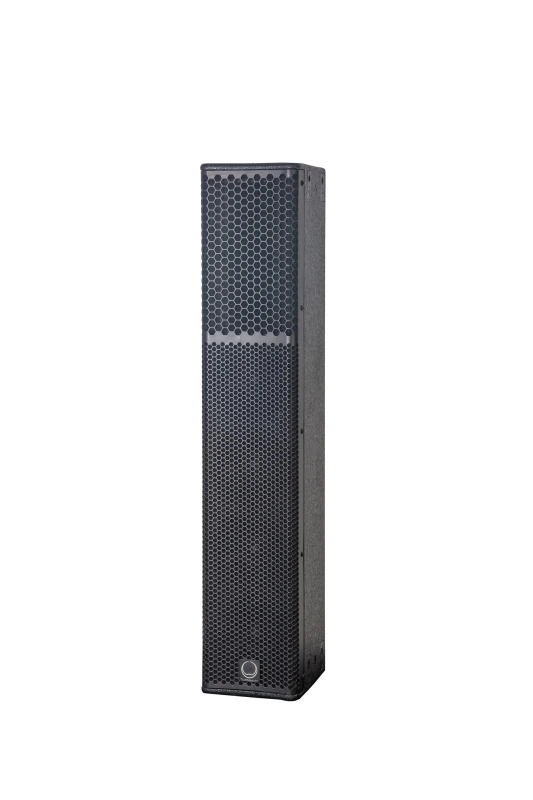

L55 active/passive 5.5 inch dual subwoofer mini line array

• System type: 4x 5 . 5-inch two-way full-range speaker
• Frequency response: 100 Hz -20 kHz
• Sensitivity (1 W / 1 m): 100dB
• Nominal impedance (Ω) 8Ω
• Rated Power (W): 450W ( AES )
• Woofer: Ferrite, 4×5.5" woofer/35mm voice coil
• Tweeter: neodymium, 2×1" tweeter/44mm voice coil
• Nominal Dispersion Angle (H x V): 110°×23°(+5,-18°)
• Maximum SPL (SPL): 123 dB (continuous), 129 dB (peak)
• Hanging parts: matching brackets, bottom brackets
• Connection sockets: 2 professional NL4MP four-pin sockets, 1+1-full-range input
• Dimension ( W×D×H ):164×219×840(mm)
• Product net weight: 16( kg)

•
  Features
   The L55 is an innovative L-Series mini vertical line source column loudspeaker with two 44mm voice coils with 1-inch exits
  Composed of a reduced tweeter and four 5.5-inch woofers, it is equipped with an innovative two-channel plane-wave array horn
  Simple, precise acoustic coverage results in a consistent and uniform sound and smooth frequency resonance at every listening point
  line, a solution for high-quality sound and extreme clarity for small installations and mobile PA systems
  Elimination, using the latest wavelet analysis technology, optimizes the crossover and unit structure so that the high and low frequency sounds arrive at the same time.

  Application


  • Meeting room, Hass, Ballroom
  • Concert, Hall, Church
  • Small and medium touring sound requirements
  • Supplementary sound reinforcement system
