LA12F New model 12 inch Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers

Specification
System type:1x12 inch two-way two-driver line array loudspeaker
Frequency response:90Hz -18 kHz
Sensitivity ( 1W/1m ):HF:108dB LF:96dB
Rated power(W):HF:160W LF:450W

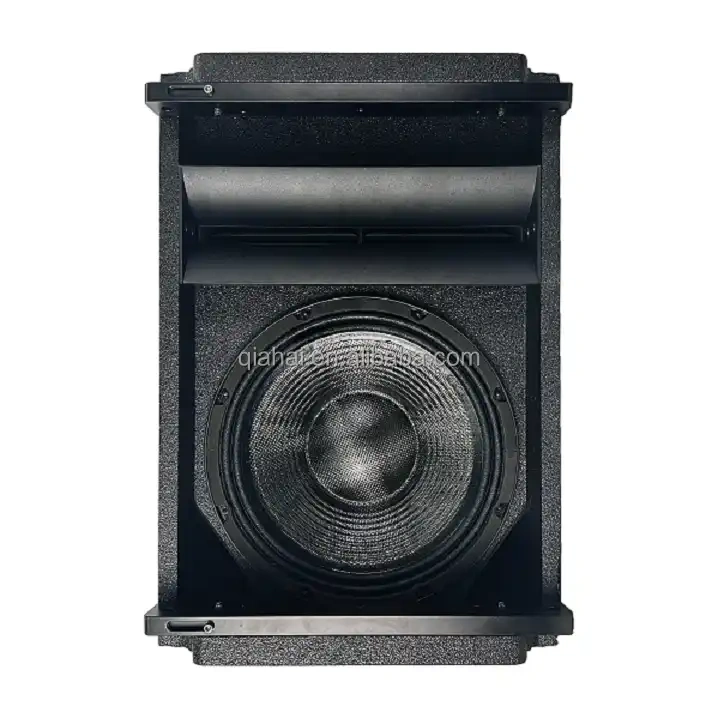

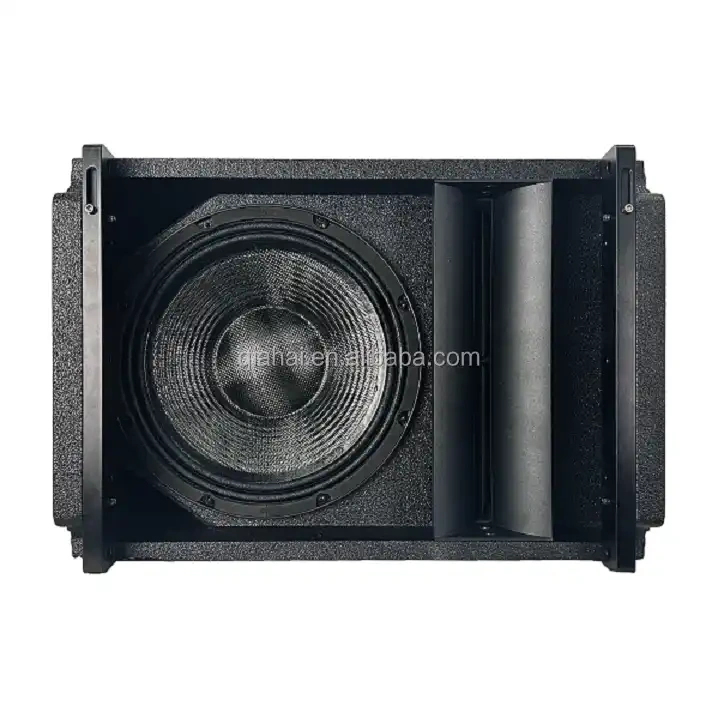

Woofer:Ferrite, 1×12" woofer/75mm voice coil
Tweeter:Ferrite, 2×1.4" outlet compressed tweeter driver/65mm voice coil
Nominal Coverage Angle (H x V):100°×10°
Maximum sound pressure level (SPL):HF:130/136 dB LF:122/128 dB
Pendants:Four-point hanging 0°-10° adjustable

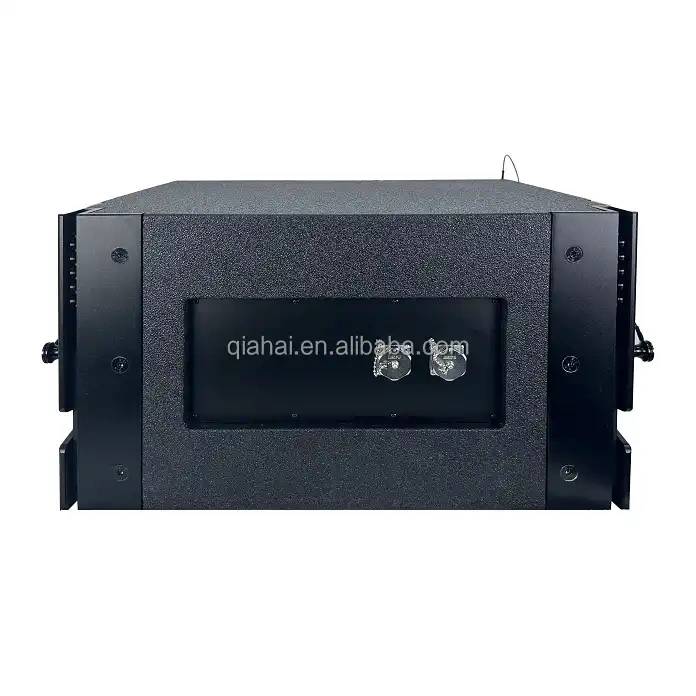

Connect the socket:Professional NL4MP 4-pin socket 2pcs,2+2-HF，1+1-LF

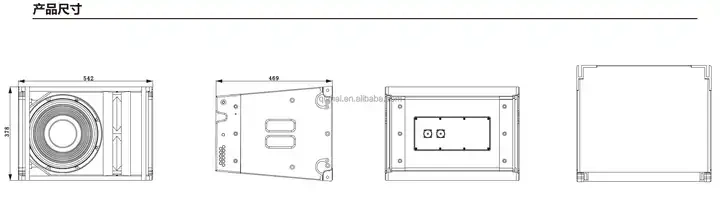

Dimensions (W×D×H ):540x469x378（mm）
Product net weight (kg):35kg
Nominal Impedance (Ω):HF:16Ω LF:8Ω

Features
The LA12F is an external two-way full-range line array speaker system. The bass is a 12-inch 75mm mid-to-low sound unit adopts a symmetrical direct arrangement, which solves the problem of balanced ratio of mid-bass and treble energy; It also uses two 65mm ferrite high-performance compression high-frequency drivers, with tweeter horn technology high-frequency sensitivity is up to 108dB (1M/1W) and the directivity is controlled within the coverage range of 100°×10° uniform directivity. All parts of LA12F are designed according to the waterproof grade standard, and a special production process is adopted to ensure that the products are met
In addition to the waterproof safety features, it can also play the functional characteristics of high-quality sound reproduction normally.

Application
The main amplifier of a medium-sized PA system
Itinerant performances
Gymnasium
Theatre/Theatre/Auditorium
