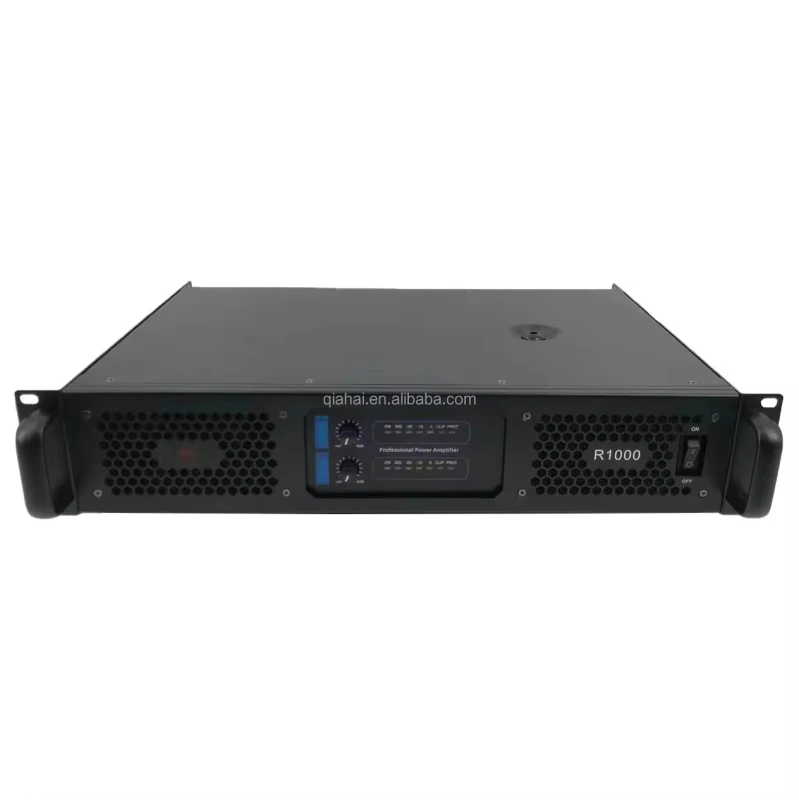

R1000 two channel professional amplifier for ktv bar home meeting

• Model R-1000 has a rated power of 1KHz, 0.5% THD+N
• Stereo 8Ω: 2x.1000W
• Stereo 4Ω: 2x.1500W
• Bridge Mono Mode 8Ω: 2800W
• Frequency response range: 20Hz-20kHz
• Total Harmonic Distortion (THD): ≤0.05%
• Damping factor: ≥200:1
• Signal-to-noise ratio: 97dB
• Input sensitivity: 0.775V
• Input common-mode rejection: >80dB
• Resolution: ≥60dB
• Input Impedance: >20K (balanced) / >10K (unbalanced)
• Voltage gain: 99
• Overall power consumption: 3000W

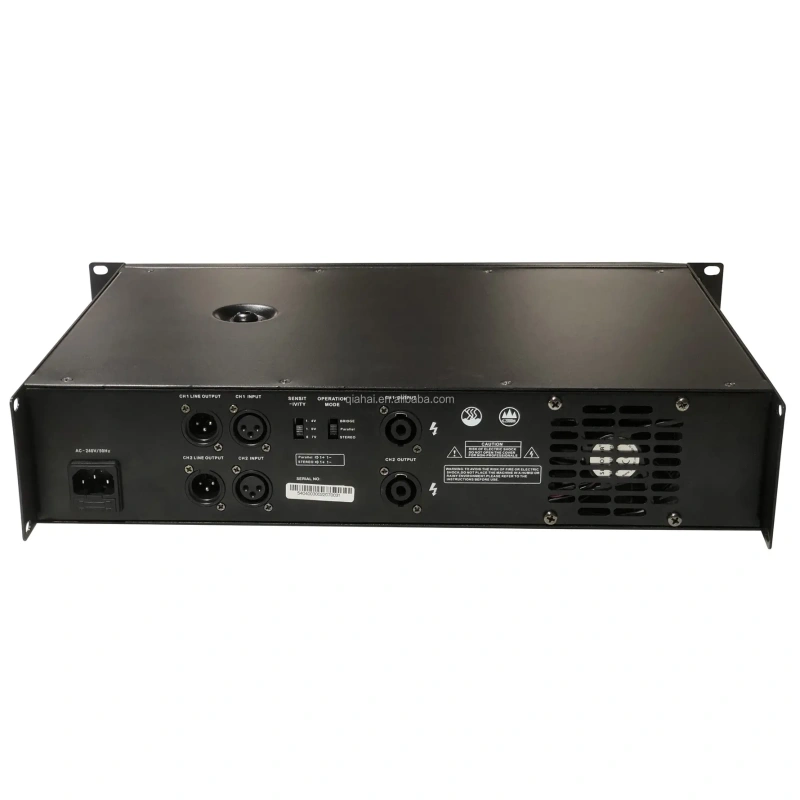

• Output Connection: Professional Output Dock Connection
• Dimensions (W× H×D: 88x483x390mm
• Net weight: 20kg

•  New MD component process, long-term selection of devices, stable and reliable products
• The transistor is in direct contact with the heat sink, and the heat dissipation performance is good
• Automatic variable speed fan and optimized cooling system make the whole machine work stably
• The unique short-circuit lock and automatic judgment reset function make the performance more reliable
• Dedicated "convex" function transformers make the product more competitive
•  More than 200 detailed tests, all indicators are excellent
