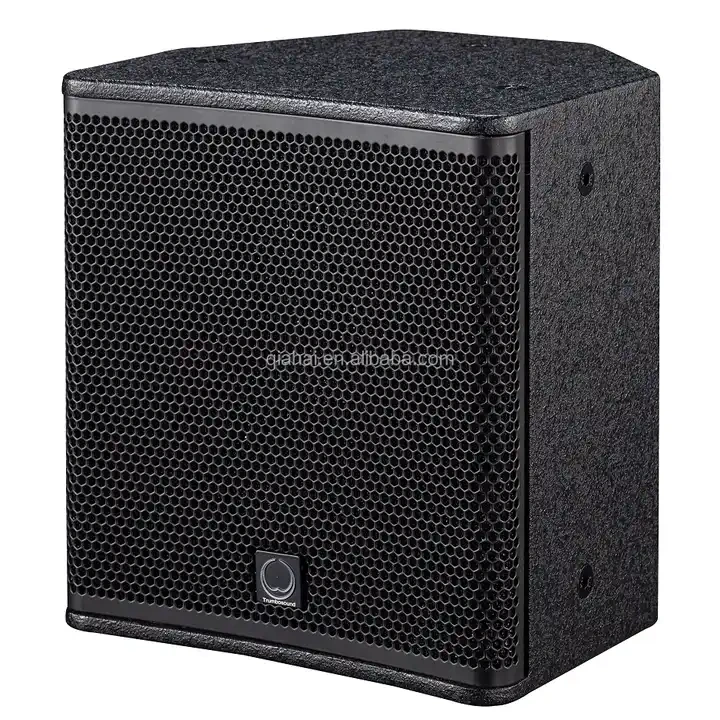

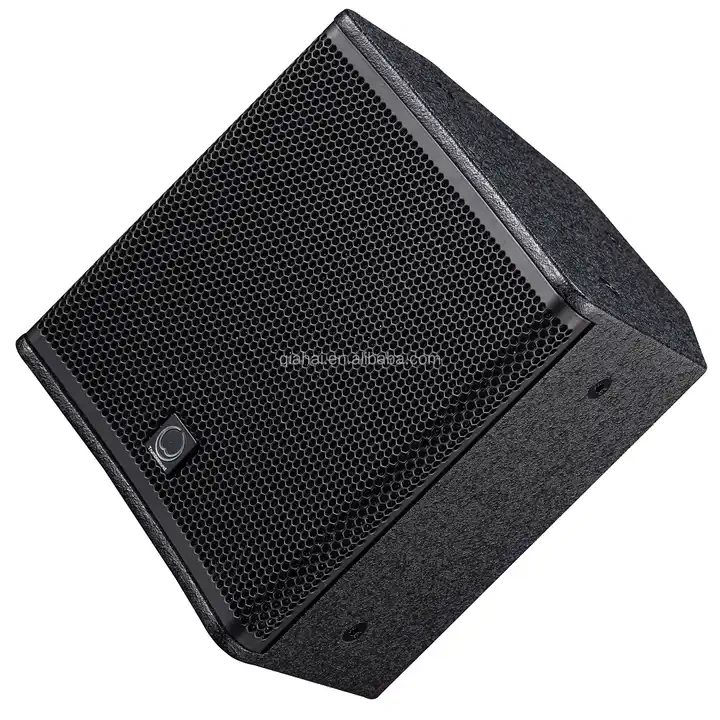

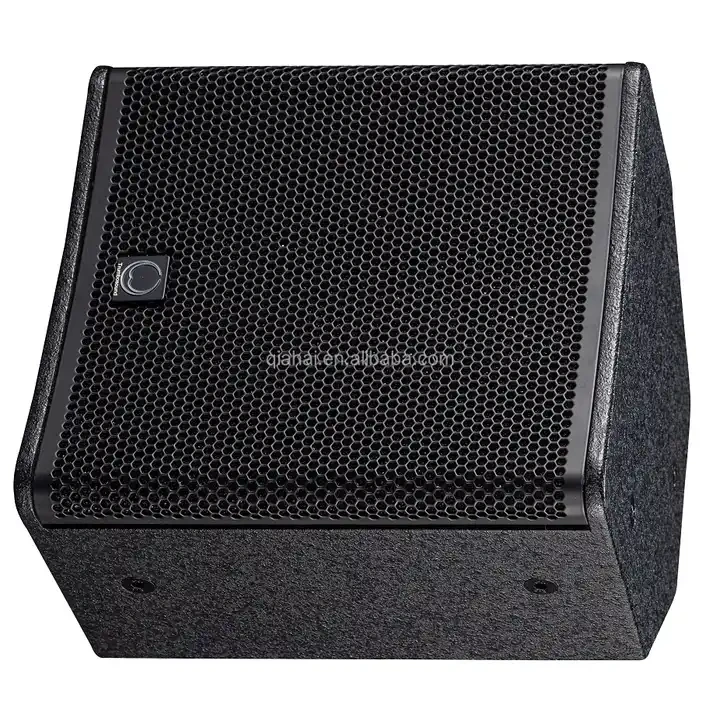

CT06 Singel 6 inch Coaxial speaker full range two-way Music box

Specification
System type: single 6-inch two-way coaxial full-range speaker
Frequency response: 91 Hz -20 kHz (-10dB)
Sensitivity ( 1 W / 1 m ): 91 dB (±2)
Nominal Impedance: (Ω) 8Ω
Rated Power (W): 180W ( AES )
Woofer: Ferrite, 1×6" woofer/50mm voice coil
Tweeter: Ferrite, 1×1" tweeter/44mm voice coil
Nominal Coverage Angle (H x V): 80°×80°
SPL max (SPL): 113 dB (continuous), 118 dB (peak)
Hanging parts: 10×M8 hanging points, bottom brackets
Connection sockets: 2 professional NL4MP four-pin sockets, 1+1-full-range input
Size ( W×D×H ) 195×225×254mm
Product Net Weight: 6( kg)

Features
The CT06 is a trapezoidal built-in two-way coaxial single 6-inch full-range loudspeaker, which is suitable for near-field sound reinforcement 44mm voice coil is composed of a 1-inch imported titanium membrane tweeter and a direct 50mm voice coil and an 6-inch low-frequency unit.
The newly processed titanium diaphragm treble satisfies the metal hearing and high power and low distortion at the same time, and the sound quality is delicate and beautiful. The same shaft structure design effectively solves the problem of transmission path difference between conventional speaker units, and the near-field listening timbre is uniform and consistent. The aluminium horn and bass cone combine to form a near-field, wide-angle, exponential tweeter with an 80° coverage angle
(H) × 80° (V) wide pointing angle.
The human ear is sensitive to phase changes, and the discontinuous phase response makes the sound sound unnatural, delayed at the frequency in tone horizontal and vertical directivity of the box is cancelled out, and the divider and unit are optimized using the latest wavelet analysis techniques
structure so that high and low frequency sounds arrive at the same time.

Application
Electric classrooms
Conference room
Music Bar
Home video and audio small main expansion
Auxiliary speakers
Table lips
Surrounding
