LA12 PASSIVE 12INCH TWO WAY FULL RANGE LINE ARRAY SUBWOOFER FOR PERFOMANCE LOUNDSPEAKER

SKU:

Array speaker can be used in indoor and outdoor. Line array is a loudspeaker system that is made up of a number of usually identical loudspeaker elements mounted in a line and fed in phase, to create a near-line source of sound. The distance between adjacent drivers is close enough that they constructively interfere with each other to send sound waves farther than traditional loudspeakers. They are of slim design and wonderful sound effect. They are optical choice for conference and gathering parties.

0.0 (0 Reviews)
0 Sold
$0.00 $313.50
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Passive LA12 New model 12 inch dsp audio Two-way full-range linne array subwoofer for outdoor performance stage loudspeakers
  • Description
  • Company profile

Specification

System type

1x12 inch two-way two-driver line array loudspeaker

Frequency response

90Hz -18 kHz

Sensitivity ( 1W/1m )

HF:108dB LF:96dB

Rated power(W)

HF:160W LF:450W

Woofer

Ferrite, 1×12" woofer/75mm voice coil

Tweeter

Ferrite, 2×1.4" outlet compressed tweeter driver/65mm voice coil

Nominal Coverage Angle (H x V)

100°×10°

Maximum sound pressure level (SPL

HF:130/136 dB LF:122/128 dB

Pendants

Four-point hanging 0°-10° adjustable

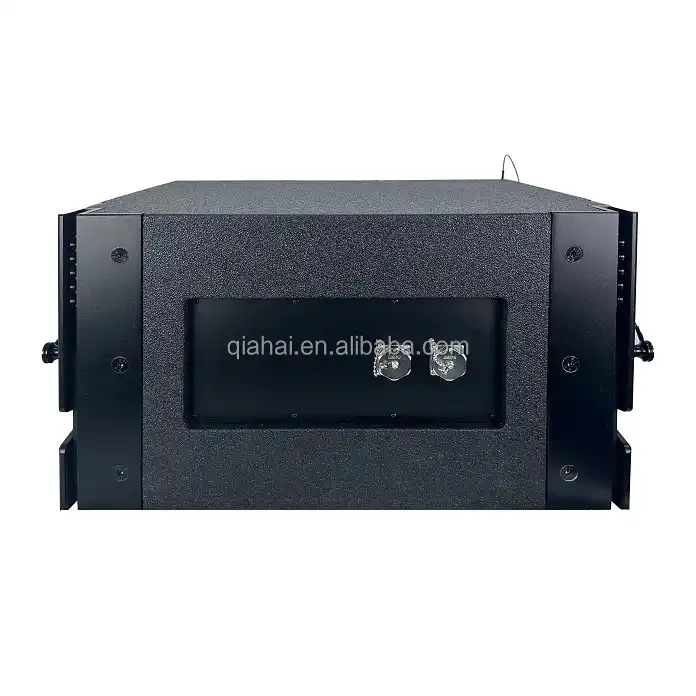

Connect the socket

Professional NL4MP 4-pin socket 2pcs,2+2-HF,1+1-LF

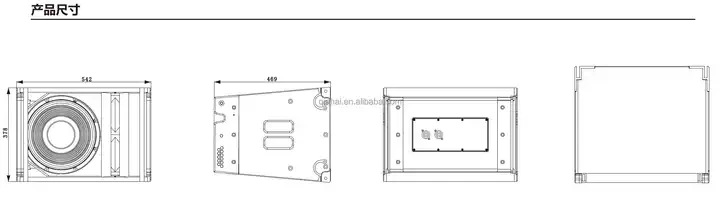

Dimensions (W×D×H )

540x469x378(mm)

Product net weight (kg)

35kg

Nominal Impedance (Ω)

HF:16Ω LF:8Ω



Feature

  • Comes with a selection of high-quality, high-performance accessories
  • Two 1.4-inch air outlets
  • 65mm voice coil, high performance loud pressure ferrite tweeter
  • 12-inch 75mm voice coil low-distortion carbon fiber ferrite
  • High frequency is delicate and transparent, low frequency is thick and powerful



Application

  • The main amplifier of a medium-sized PA system
  • Itinerant performances
  • Gymnasium
  • Theatre/Theatre/Auditorium
