LA15M Passive 15 inch subwoofer audio two way full range outdoor performance studio music concert

Specification
System type:Single 15 inch two-way coaxial full-range speaker
Frequency response:65 Hz -20 kHz
Sensitivity ( 1W/1m ):98 dB
Rated power(W):450W
Woofer:Ferrite, 1×15" woofer/75mm voice coil
Tweeter:Ferrite, 1×1.5" outlet compressed tweeter driver/75mm voice coil
Nominal Coverage Angle (H x V):80°×80°
Maximum sound pressure level (SPL):123dB (Continuous), 129dB (Peak)
Pendants:M8 hanging point, bottom bracket

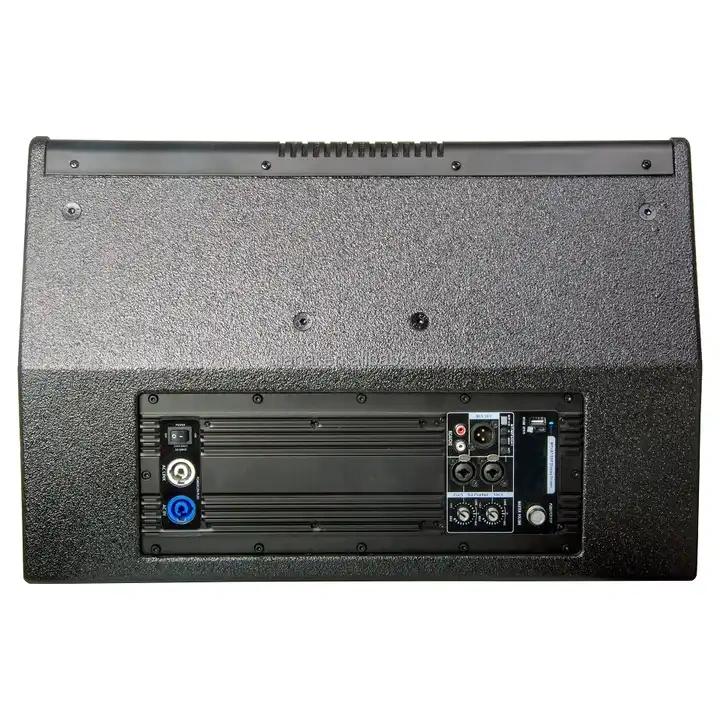

Connect the socket:Professional NL4MP 4-pin socket 2, 1+1-full-range input
Dimensions (W×D×H ):581×362×521（mm）
Product net weight (kg):20( kg )
Nominal Impedance (Ω):8Ω

Features

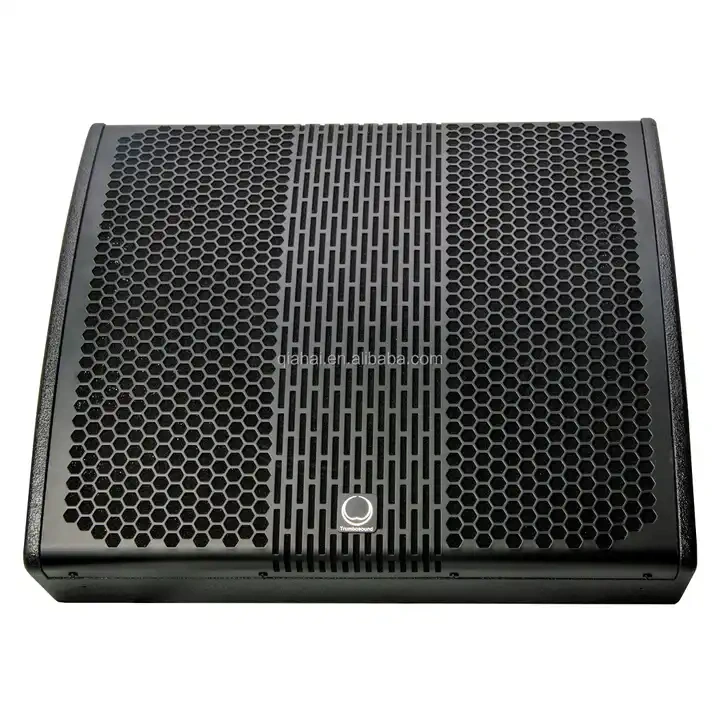

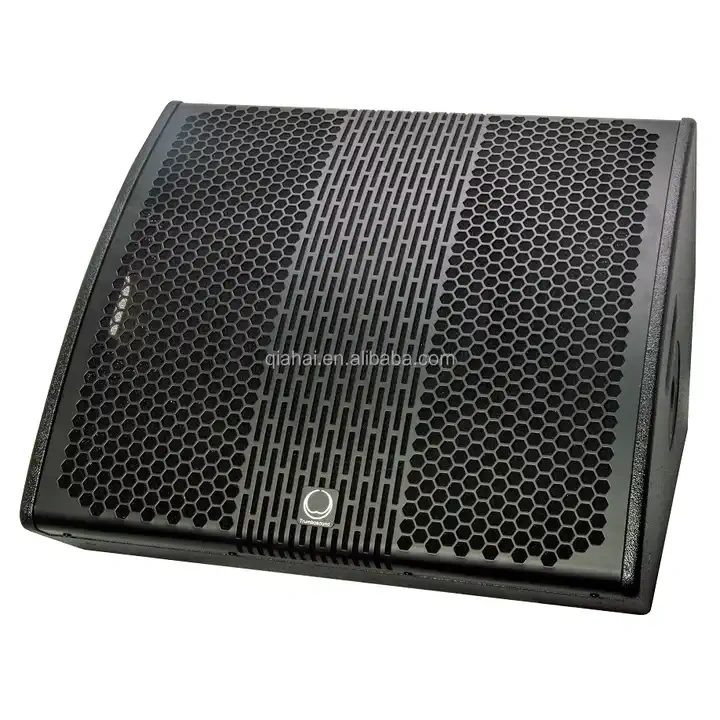

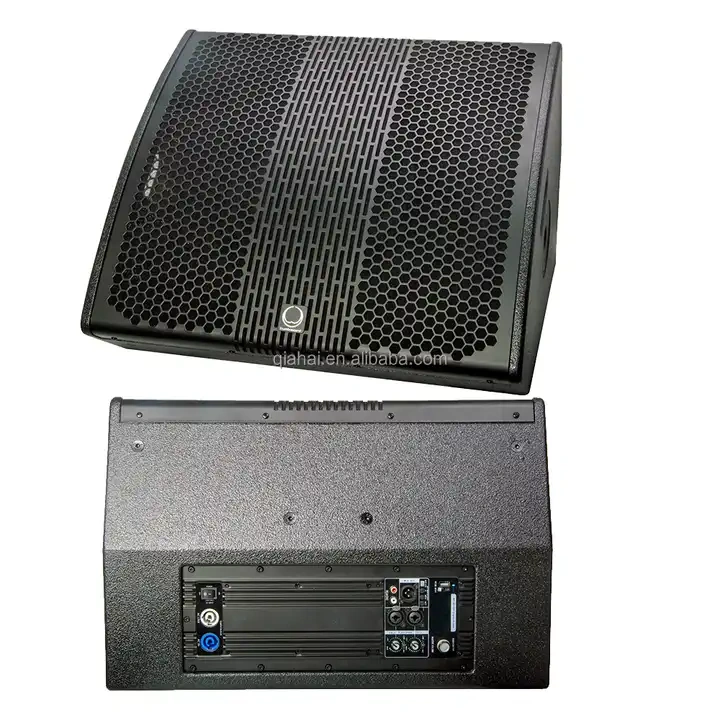

The LA15M is a monitor designed specifically for the stage, with a high-performance 15-inch 75mm tone
The low-frequency paper cone unit in the circle, the treble is composed of a 75mm voice coil 1.5-inch outlet titanium membrane tweeter compression unit.
The newly processed titanium membrane treble satisfies both metal sound and high power and low distortion, and the sound quality is delicate and beautiful. Coaxial
The structural design effectively solves the problem of transmission path difference between conventional speaker units, and the coverage angle of the horn reaches 80°(H) × 80° (V) wide pointing angle, far and near field hearing sound uniformity.
The cabinet structure is placed at an angle of 55°, which can meet the needs of short-distance stage monitoring.
It is equipped with 12 M8 rigging points and a support base for easy use in different occasions.

Application
 Theaters
auditoriums
banquet halls
conventions
Chambers
multi-purpose halls
auxiliaries
dances
Table return
side return
and lip fill
