LA208+LA18S Line Array Sound System Combo Set Full Range Woofer Speakers For Events Performance

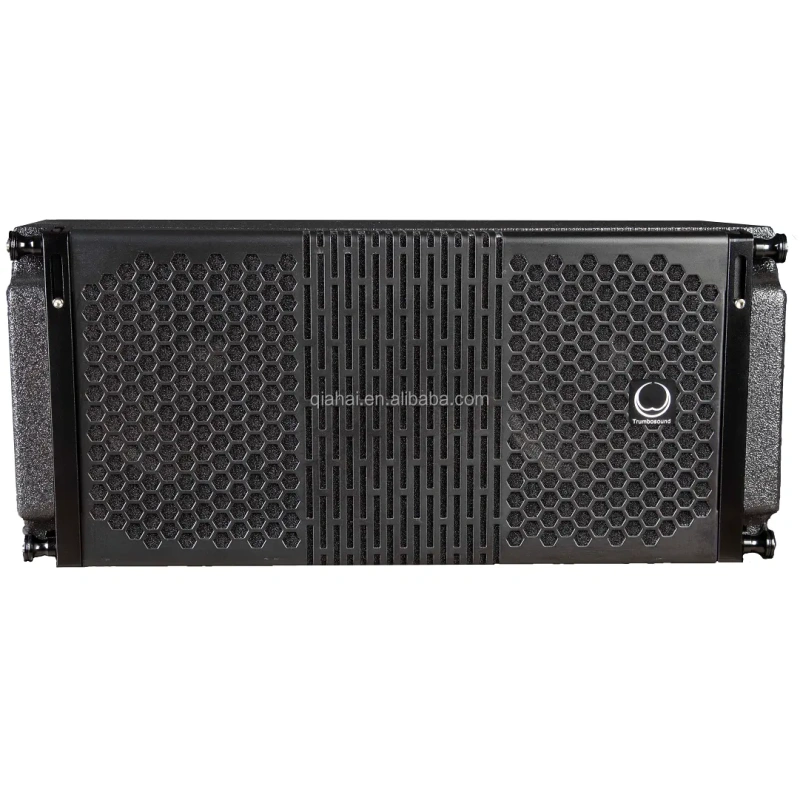

• System type: dual 8-inch two-way two-drive curve array speakers

• Frequency response: 70Hz -18 kHz (±3)
• Sensitivity (1W/1m): HF: 110dB LF: 98dB
• Rated power (W): HF: 80W LF: 400W
• Nominal Impedance (Ω): HF: 16Ω LF: 16Ω
• Woofer: Ferrite, 2×8" woofer/65mm voice coil

• Tweeter: 1×3 inch ferrite tweeter (75mm voice coil)
• Nominal Coverage Angle (H xV): 100°×10°
• Maximum sound pressure level (SP L): HF: 130/136dB LF: 124/130dB
• Hanging piece: Three-point hanging 0 to 10° adjustable
• Connection sockets: Professional NL4MP four-pin sockets, 2 x 2+2-HF, 1+1-LF
• Dimensions (W×D×H ):568×455×250(mm)
• Product net weight (kg): 23.4kg

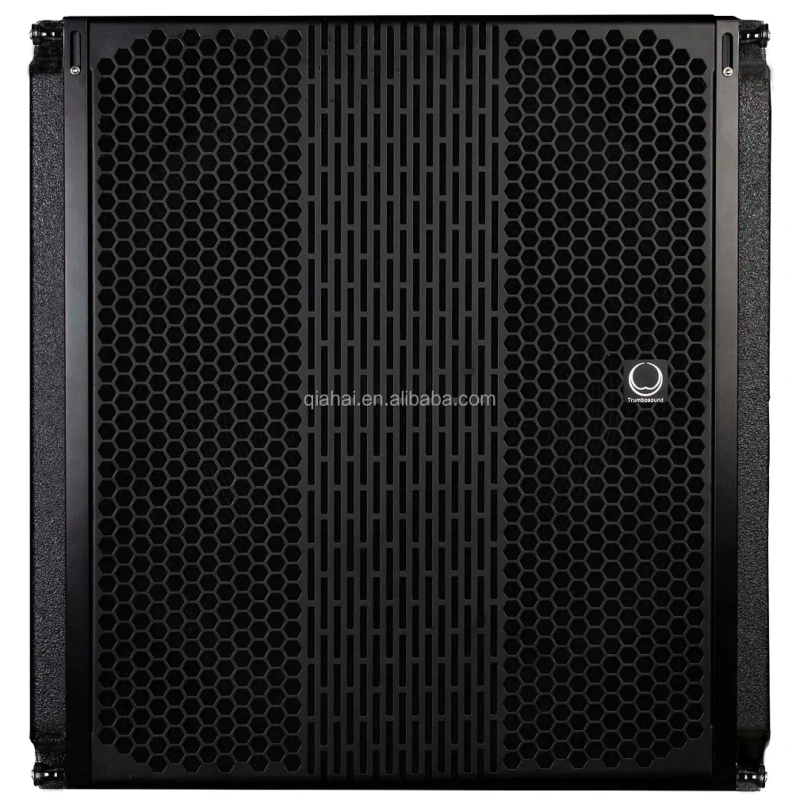

• System type: Single 18-inch subwoofer
• Frequency Response: 40Hz -250Hz (±3)/35Hz -300Hz (-10)
• Sensitivity (1W/1m): 98dB
• Nominal Impedance (Ω): 8Ω
• Rated power (W): 600W
• Woofer: Ferrite, 1×18" woofer/100mm voice coil
• Maximum sound pressure level (SP L): 126dB / 132dB
• Hanging parts: three-point hanging
• Connecting sockets: Professional NL4MP four-pin sockets 2 x 1+1-
• Dimensions (W×D×H ):568×590×600(mm)
• Product net weight (kg): 45kg

1.
   Features Of LA18S

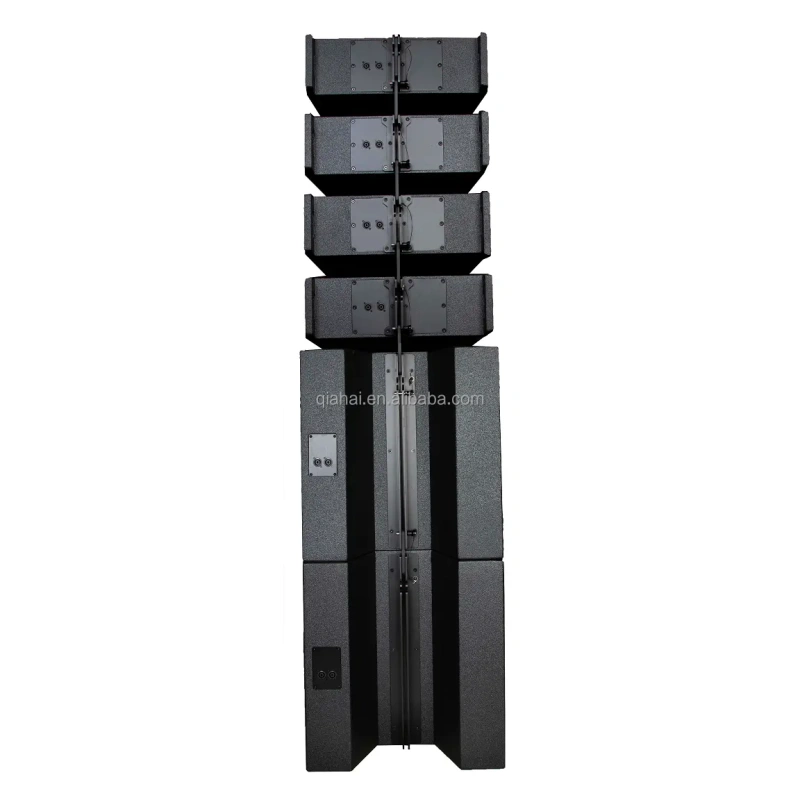

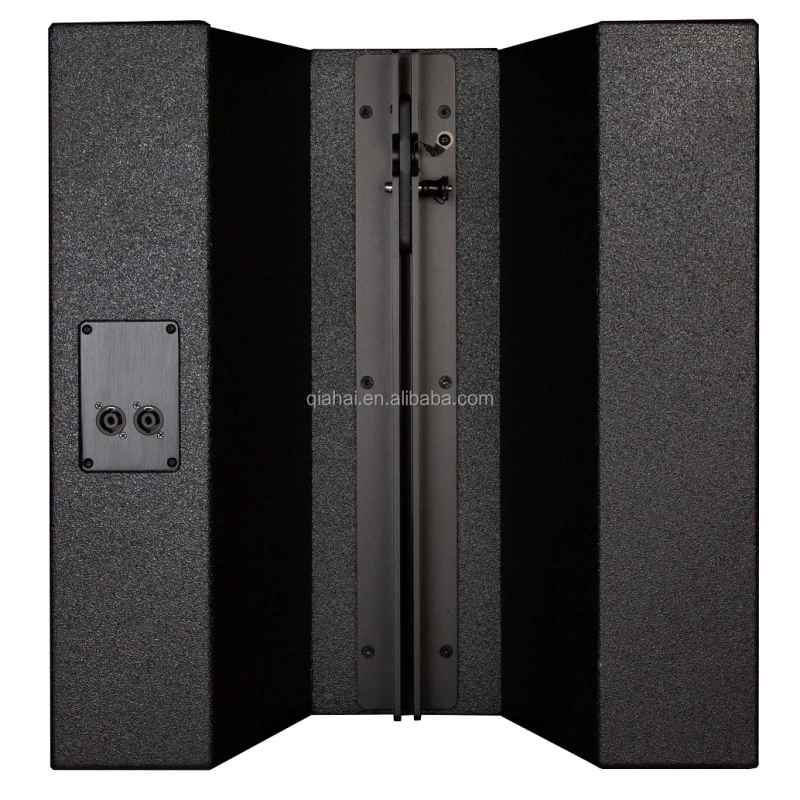

   The LA18S is an inverted design subwoofer that is a low-frequency extension of the LA208 line array loudspeaker.The subwoofer is combined with the LA208 array speaker to form a three-way two-wheel drive array speaker group.LA18S is designed with the same supporting hanging parts as LA208, and LA208 is used for combined hoisting or stacking Stacked method.

   Application
   The main amplifier of the medium-sized PA system
   Itinerant performances
   Gymnasium
   Theatre/Theatre/Auditorium
