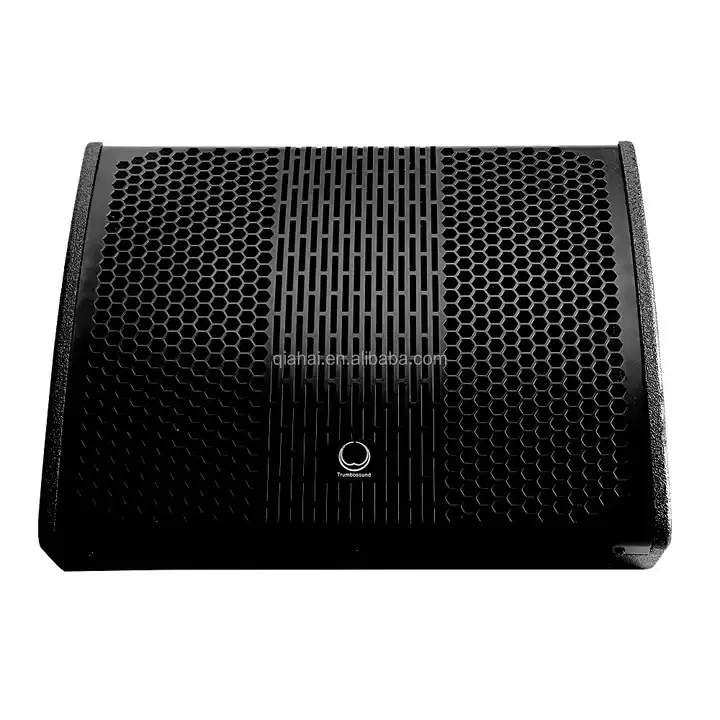

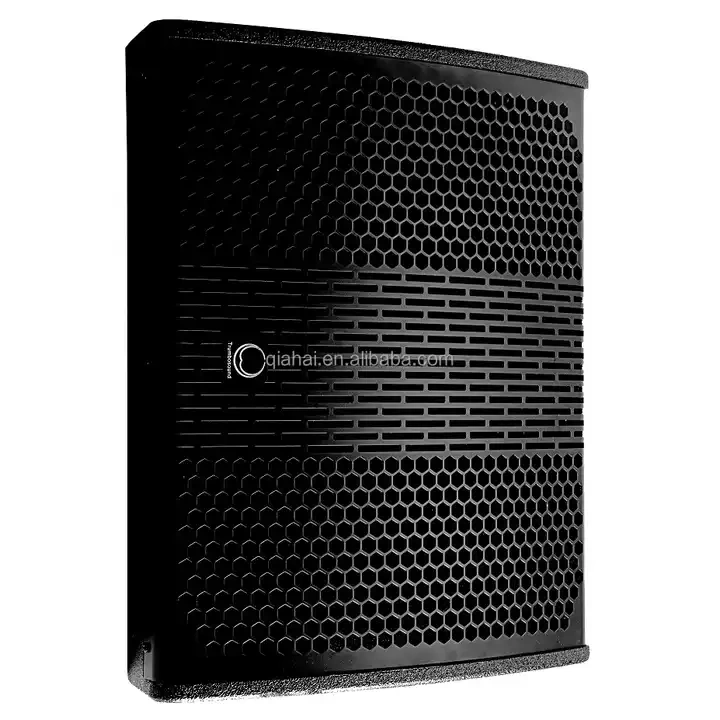

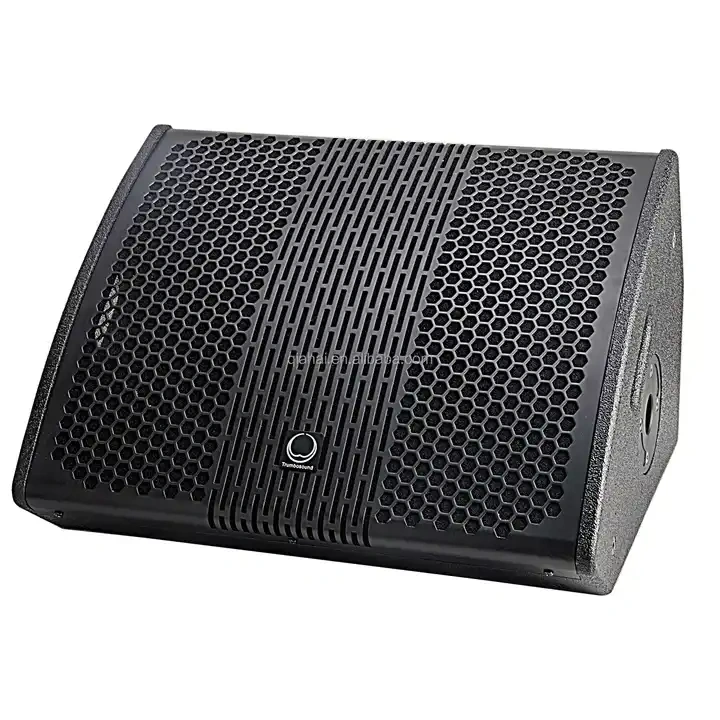

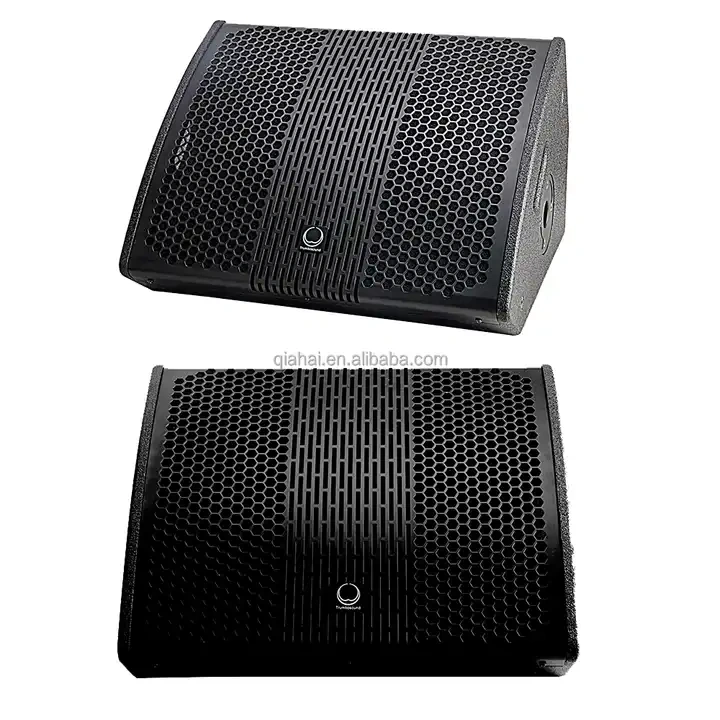

LA12MS active12 inch Two-way full-range subwoofer for outdoor performance concert stage monitor speakers

Specification
System type:Single 12 inch active 2-way loudspeaker with DSP
Frequency response:75 Hz -20 kHz
Sensitivity ( 1W/1m ):97 dB
Rated power(W):400W
Woofer:Ferrite, 1×12" woofer/75mm voice coil
Tweeter:Ferrite, 1×1.5" outlet compressed tweeter driver/75mm voice coil
Nominal Coverage Angle (H x V):80°×80°
Maximum sound pressure level (SPL):122dB (Continuous), 128dB (Peak)
Pendants:M8 hanging point, bottom bracket

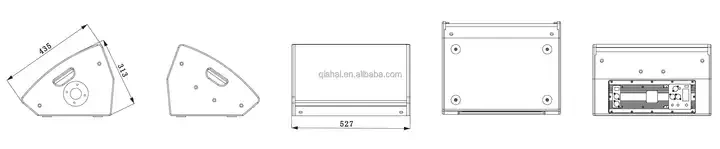

Dimensions (W×D×H ):527×313×435（mm）
Product net weight (kg):19kg
Nominal Impedance (Ω):8Ω

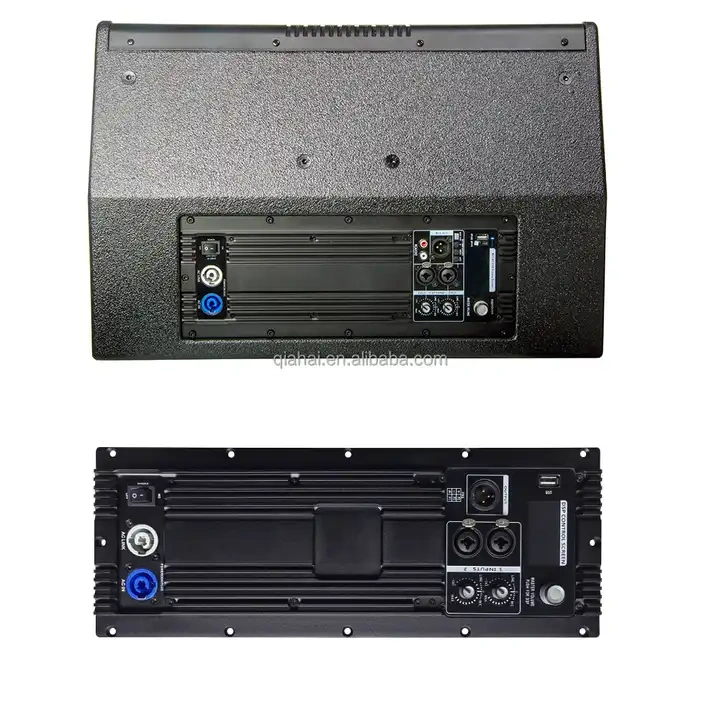

Connectors:1× XLR IN, 2× XLR OUT, 1×USB control interface, 2× Powercon IN/OUT
Sample rate:48kHz/24Bit
Filter type :Butterworth,Linkwitz,bessel/6dB/oct~48dB/oct
Amplifier module :Dual-channel Class D
gain :20dB
SIGNAL-TO-NOISE RATIO S/N :95dB
Operating voltage range:AC1 0 0 - 2 4 0V, 5 0 / 6 0Hz

Features
The LA12MS is a monitor designed specifically for the stage with a high-performance 12-inch 75mm sound
The low-frequency paper cone unit in the circle, the treble is composed of a 75mm voice coil 1.5-inch outlet titanium membrane tweeter compression unit;
The newly processed titanium membrane treble satisfies both metal sound and high power and low distortion, and the sound quality is delicate and beautiful. Coaxial structural design effectively solves the problem of transmission path difference between conventional speaker units, and the coverage angle of the horn reaches 80°(H) × 80° (V) wide pointing angle, far and near field hearing sound uniformity.
The cabinet structure is placed at an angle of 55°, which can meet the needs of short-distance stage monitoring.
Built-in Class D switching power amplifier module and DSP processing module with powerful computing power, which can be used in high efficiency and stability provides a large dynamic and clean output drive power while running.

Application
Theaters
auditoriums
banquet halls
conventions
Chambers
multi-purpose halls
auxiliaries, dances
Table return
side return
and lip fill
