Specification

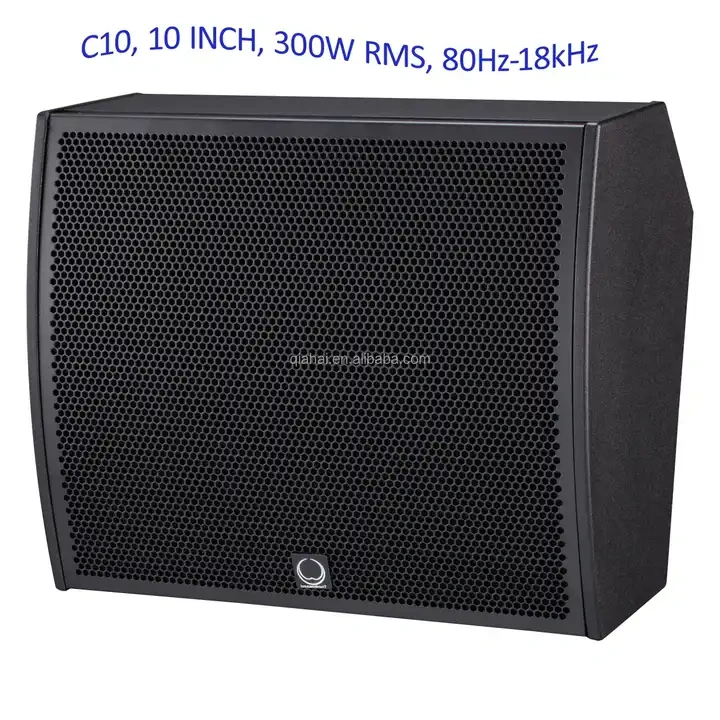

System type: 1 x 10-inch surround speakers
Frequency response: 80 Hz -18 kHz ((±3)-10dB@55Hz
Sensitivity 93dB Nominal impedance 16Ω
Rated power (W): 300W (AES)
Bass unit: Ferrite: 1×10” woofer/65mm voice coil
Tweeter: Ferrite: 1×1” tweeter/44mm voice coil
Nominal coverage angle (H x V): 90°×90°
Maximum sound pressure level (S P L): 118dB (continuous), 124dB (peak)
Dimensions (W×D×H):380×295×480 (mm)
Product net weight: 16(kg)
Features
Ultra-wide frequency response range from 55Hz to 20 kHz
Sensitivity up to 93 dB, 1W, 1m
300W high power withstanding capability
Unique 15 degree angle cabinet design
The input plug is placed on the top for easy and quick installation
Stable and consistent horizontal and vertical coverage angles
Acoustic performance optimized for immersive sound field requirements
Application
Cinema
|
