Home > Stage Performance Speakers > LA12A ACTIVE 12 INCH TWO WAY FULL RANGE LINE ARRAY SUBWOOFER FOR OUTDOOR PERFOMANCE STAGE LOUNDSPEAKER

1/1

LA12A ACTIVE 12 INCH TWO WAY FULL RANGE LINE ARRAY SUBWOOFER FOR OUTDOOR PERFOMANCE STAGE LOUNDSPEAKER

Name: LA12A ACTIVE 12 INCH TWO WAY FULL RANGE LINE ARRAY SUBWOOFER FOR OUTDOOR PERFOMANCE STAGE LOUNDSPEAKER
Brand: Guangzhou Huiyin Audio Co., Ltd.
SKU: LA12A
Price: 456 USD
Availability: InStock

Array speaker can be used in indoor and outdoor. Line array is a loudspeaker system that is made up of a number of usually identical loudspeaker elements mounted in a line and fed in phase, to create a near-line source of sound. The distance between adjacent drivers is close enough that they constructively interfere with each other to send sound waves farther than traditional loudspeakers. They are of slim design and wonderful sound effect. They are optical choice for conference and gathering parties.

0.0 (0 Reviews)

0 Sold

$456.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description
Company profile

Specification

System type	Single 12 inch two-way two-driver active line array loudspeaker
Frequency response	90 Hz -18 kHz（±3）
Sensitivity ( 1W/1m )	HF:108dB LF:98dB
Rated power(W)	HF:160W LF:600W
Woofer	Ferrite, 1×12" woofer/75mm voice coil
Tweeter	Ferrite, 2×1.4" outlet compressed tweeter driver/65mm voice coil
Nominal Coverage Angle (H x V)	100°×10°
Maximum sound pressure level (SPL)	HF:130/136dB LF:122/128dB
Pendants	The four-point hanging is adjustable from 0 to 10°

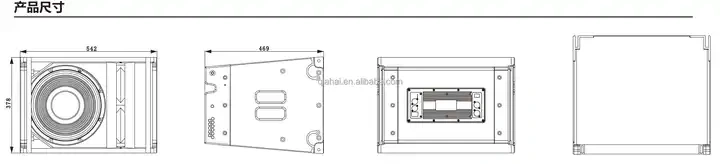

Dimensions (W×D×H )	540×469×378（mm）
Product net weight (kg)	48kg
Nominal Impedance (Ω)	HF:16Ω LF:16Ω
Connectors	1× XLR IN；1× XLR OUT ；RJ45（RS485 control interface, 2×Powercon IN/OUT
Sample rate	48kHz/24Bit
Filter type	Butter worth,Linkwitz,bessel/6dB/oct~48dB/oct
Amplifier module	Dual-channel Class D
gain	20dB
SIGNAL-TO-NOISE RATIO S/N	95dB
Operating voltage range	AC1 0 0 - 2 4 0V, 5 0 / 6 0Hz

Features

12-inch 75mm mid-bass driver
Two 65mm ferrite high performance compression high frequency drivers
High frequency sensitivity reaches 108dB (1M/1W)
Directivity control: Uniform directivity within a 100°×10° coverage area

Application

Outdoor medium and large sound reinforcement system main amplification
Mobile performances are expanding
The main gymnasium is expanding
The theater/theater/auditorium/multipurpose hall is expanded
